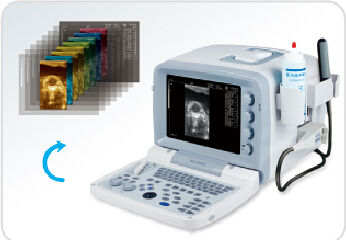

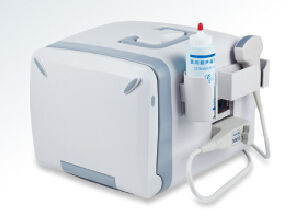

KX2000G vet Full Digital B Mode Ultrasonic Diagnostic Instrument |
Display:10" high resolution black & white display, line by line scan without sparkle, protect the doctors’ eyes, and reduce the visual fatigue. |
Probe mode：electric convex / electric linear |
Elements：64 elements |
Standard probe:6.5Mhz multi-frequency linear rectal probe (4.5 / 5.5 / 6.5 / 7.5 MHz) Optional probe: 3.5MHz multi-frequency convex probe (2.0 / 2.5 / 3.5 / 5.0 MHz) Optional probe: 4.0Mhz multi-frequency rectal convex probe (2.0/2.5/4.0/5.0 MHz) Optional probe: 5.0Mhz multi-frequency micro-convex probe (4.5 / 5.0 / 6.5 /7.5 MHz) |
Scanning angle:convex probe 60° |
Body mark:1. Bovine, 2.Equine, 3. Canine, 4. Feline, 5. ovine. Total 22 body marks. |
Probe socket:1 PC |
Channels：≥16channels digital beaming composite |
Resolution：horizontal≤2mm，vertical≤1mm |
Dead Zone: ≤5mm (test report is 3 mm) |
Max scanning depth：≥170 mm（test report actual ≥180 mm） |
The max display depth :210 mm (depth hoist could see 240 mm) |
Geometry position precision：Transversal≤5％，Longitudinal≤5％ |
Scanning mode：B、2B、4B 、B/M、M |
8 kinds magnification |
Gain：0～127dB |
Dynamic scope：27～90dB，visible & adjustable |
Four different angles / switchable width |
Gray scale:256 |
Imaging technique：full digital beam-composite, continuous dynamic focusing, dynamic aperture |
Image storage:100 frames permanent storage, without loss of image when power off. |
256 frames cine loop |
TGC control, far field / near field |
Image processing：pre-process (continuous dynamic focus, dynamic aperture, dynamic filter）, post-process（4 grades gamma correction）、frame correlation, black/white reversal, left/right reversal, up/down reversal, edge enhancement(4 grades), etc. |
Depth hoist / local zooming |
Frame frequency：30 frames/s |
Measurement:distance, circumference, area, volume, etc. OBmeasurement:GA & EDD of Equine, Bovine, Ovine, Canine, Feline Conventional measurement of cardiac: depth, slope, heart rate, cycle |
Note:name, age, gender, hospital name, time, date, probe mode, frequency, focus, frame correlation, gain, contract, etc. |
English Menu |
photoelectricity tracking ball |
Puncture guide, with two approvable guiding lines whose angle and position can be adjustable. |
USBfor image transfer(optional software of case report process center) |
Output:PAL / NTSC |
Power supply:AC110/230 -15％～＋10％(self-adaption supply voltage) 60/50Hz±1Hz |
Energy-saving |
Video printer |
