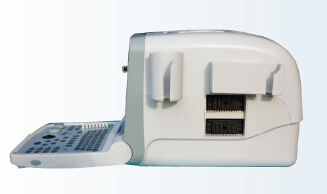

KX2000G portable full digital B mode human ultrasound scanner

KX2000G portable full digital B mode human ultrasound scanner

    • KX2000G portable full digital B mode human ultrasound scanner
    • KX2000G portable full digital B mode human ultrasound scanner
    • KX2000G portable full digital B mode human ultrasound scanner
    • KX2000G portable full digital B mode human ultrasound scanner
    • KX2000G portable full digital B mode human ultrasound scanner
  • KX2000G portable full digital B mode human ultrasound scanner

    Product Details:

    Place of Origin: China
    Brand Name: KAIXIN
    Certification: CE,ISO13485,
    Model Number: KX2000G

    Payment & Shipping Terms:

    Packaging Details: Carton
    Delivery Time: A week after payment
    Payment Terms: T/T
    Supply Ability: 100
    Minimum Order Quantity: 1
    Contact Now
    Detailed Product Description

    Portable:KX2000G(09)

    full digital B mode ultrasonic diagnostic instruments



    Parameter:

    • Adopt ARM9 Embedded Control Systems, FPGA signal processing systems and specially selected ultrasonic hardware system, making the machine safer and more reliable.
    • 10" high resolution CRT monitor, line by line scanning without sparkle.
    • Menu operation, language: Chinese/English switchable
    • Single probe socket, automatically identify the probe, support several optional probes.
    • Body mark: 64 pcs of body marks with probe position.
    • Display mode:B,2B,4B ,B/M,M, total 5 kinds.
    • 8 kinds of Magnification, maximum display depth is 240mm.
    • Gain range:0~127dB
    • Dynamic range :27~100dB;
    • Gray:256
    • Frame frequency:30 frames/second.
    • Permanent image storage: 100 frames.
    • Cine loop:256 frames.
    • Puncture guiding function,(2 guiding lines, angel and position adjustable)
    • General measurement:distance,perimeter, area , volume, heart rate, GA, EFW, EDD.
    • Obstetric measurement and analysis: 10 kind of obstetric software, several GA measurement and OB report.
    • Transfer image through USB port to computer.
    • Dual-mode TV output:PAL/NTSC, connecting to thermal printer and ultrasonic working station.
    • Power supply:AC110/230 -15%~+10%(self-adaption supply voltage) 60/50Hz±1Hz.
    • Net weight:12kg.
    • Main unit size:387x319x270mm(length x width x height).

    Standard configuration:

    • Main unit: 1 pc
    • 10" high resolution CRT monitor.
    • Single probe socket , automatically identify probe technology.
    • 3.5MHz multi-frequency abdomen convex probe: 1 pc



    Optional configuration:

    • Probe:

    7.5MHz multi-frequency high linear probe

    6.5MHz multi-frequency trans-vaginal probe

    5.0MHz multi-frequency micro-convex pediatrics probe

    • Trolley
    • Thermal printer (P93W-S)
    • Color LCD monitor
