DCU12 full digital color doppler vet ultrasound scanner

DCU12 full digital color doppler vet ultrasound scanner

    • DCU12 full digital color doppler vet  ultrasound scanner
    • DCU12 full digital color doppler vet  ultrasound scanner
    • DCU12 full digital color doppler vet  ultrasound scanner
    • DCU12 full digital color doppler vet  ultrasound scanner
  • DCU12 full digital color doppler vet  ultrasound scanner

    Product Details:

    Place of Origin: China
    Brand Name: KAIXIN
    Certification: CE,ISO13485,
    Model Number: DCU12V

    Payment & Shipping Terms:

    Packaging Details: Carton
    Delivery Time: A week after payment
    Payment Terms: T/T
    Supply Ability: 100
    Minimum Order Quantity: 1
    Contact Now
    Detailed Product Description


    DCU12 Full Digital Color Doppler Ultrasound scanner(Vet)
    Instrument name:
    DCU12 full digital color Doppler ultrasound diagnostic instrument
    Application range of instrument: DCU12 have the leading image process technical and practical clinic solution method, apply to ultrasound diagnosis of Bovine, Canine, Equine, Feline, Goat, Camel, Ovine and Swine.
    2.Primary system performance overview

    1. Adopt A8 Embedded flat form, entirely defenses virus invasion, with highly reliability.
    2. Operation system: Linux operation system, Chinese/English menu can switch arbitrarily.
    3. Full digital multi-beam formation technologies, high accuracy postpone point wise adopt dynamic focusing, broadband frequency imaging, adaptive imaging optimization technique, adaptive vessel imaging, adaptive Doppler imaging etc.
    4. Broadband frequency full digital sound former: dynamic focusing.
    5. Two-dimensional gray-scale imaging unit.
    6. M mode imaging unit.
    7. Dynamic range can visual and adapt.
    8. Two-dimensional gray-scale imaging unit, gray-scale≥256, with excellent subtle and contrast resolution and full uniformity.


    3. Technique parameters

    • Standard parameters
    1. Gray scale: 256
    2. Color scale: 256
    3. Monitor: 10.4” flicker free high resolution medical color LCD.
    4. Adapter rating: 100-240V~1.2-6.0A Frequency: 50-60Hz
    5. Output of adapter: DC12.8V 3.0A
    6. Power consumption: ≤100VA
    7. Main unit size: approx. 256*150*326(mm, L*M*H)
    8. Weight of main unit: approx. 4.5kg(excluding accessories)
    • Multimedia and external device
    1. Video recorder;
    2. I-Station integral working station, realizing store image, general report and could print function.
    3. U-disk (support document management, software upgrading, one-key storage function), DICOM port, convenient for doctor to manage data, support long-distance transmission.
    4. Dual-mode TV output: PAL/NTSC
    • Probe socket

    Two activate probe socket, with automatically identification technique, support optional multi probe.

    • Language

    Menu interface operation, interface language: can switch Chinese/English

    • Probe parameter

    Number of elements: 80
    Linear rectal probe 6.5MHz; Range of frequency: 4.5/ 5.5/ 6.5/ 7.5MHz
    Convex array probe 3.5MHz; Frequency range: 2.0\2.5\3.5\5.0MHz
    High frequency broadband probe 7.5MHz; Frequency range:6.0\6.5\7.5\9.0MHz
    Dimpling broadband probe6.5MHz; Frequency range:5.0/6.5/7.5/9.0MHz
    4.Main function
    1. System preset function.
    2. Customized definition:(I-User-defined function overturn the blindness setting of the customized definition parameter. Remember the setting during the use process and finish browse and store only by one key.
    3. Probe switching function
    4. Mode switch function
    5. Magnification and depth range choosing function
    6. Frequency conversion
    7. Frame correlation function
    8. Edge enhance adjustment function
    9. Compression curve adjustment function
    10. Image post processing function
    11. Focus position adjustment function
    12. Up and down, left and right reversal function
    13. Image freeze and unfreeze function
    14. To realize multistage TGC adjustment, total gain and function adjustment function
    15. Image optimizing imaging technology
    16. Color frequency, PRF and wall filter adjustment function
    17. Sensitive, color afterglow, color threshold value, color balance, color smooth, artifact elimination function
    18. Angle of deflection, sample volume, linear array color deflection, speed scale and basic line adjustment function.
    19. Harmonic adjustment
    20. General measurement of M mode,CFM mode,PDI mode,PW mode; application measurement of abdomen,obstetrics,cardiac, urinary system and superficial organ.
    21. Sound power adjustment function
    22. Puncture guiding function
    23. Gravel positioning function
    24. Built-in dish store space16G, store lots of images, reports and video. Store forever and not miss when power cut.(BMP image≥10000, PNG image≥100000)
    25. Image management function
    26. Magnanimity movie clips store and playback function
    27. Body mark function
    28. Input note
    29. Patient information input
    30. Automatic report forming
    31. One key store function: Convenient one key store function provides user faster operation
    32. One key report invoking

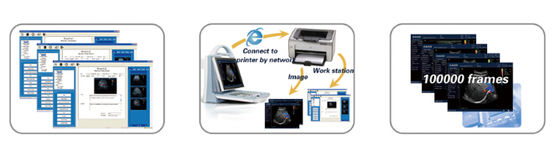

    33. Using only one key to transmit the ultrasonic images to the network printer; realize web print and make up the weakness of specified printer.
    34. Web print function
    35. LCD brightness adjustment
    36. Power conservation function
    37. Chinese-English menu convert
    6. Measurement / Calculation

    1. Normal Measurement:B routine measurement、 M routine measurement、 D routine measurement software packages and each measurement report.
    2. OB Measurement:EDD and GA for bovine, equine, ovine, canine, feline, goat,swine and llama and OB report generation.
    3. Urological Measurement and Analysis:Urology measurement software packages and urological report.
    4. Superficial Organs Measurement and Analysis:Superficial organs measurement software packages and superficial organs report.
    5. Cardio Measurement and Analysis:Cardio measurement software packages and cardio report.


    7.The measurement report
    Obstetrics、cardiac、urinary and other measurement reports, automatic storage measurement results and report generation.
    8.Mark

    1. 127 kinds of mark with probe position, by intuitive position mark detailed interface to select position mark rapidly.
    2. Text mark, preset text content
    3. Arrow mark.


    9.standard configuration

    • Main unit : 1 PC
    • 3.5MHz common abdominal probe: 1PC
    • You can choose any 1pc probe from below :

    >6.5MHz rectal linear probe
    > 7.5MHz linear probe
    >6.5MHz micro-convex probe

    • Work station software : 1 Set
      • Reticle:1 pc


    10. Optional accessories

    • Foot switch
    • Portable trolley
    • Video recorder
    • Ethernet switch
