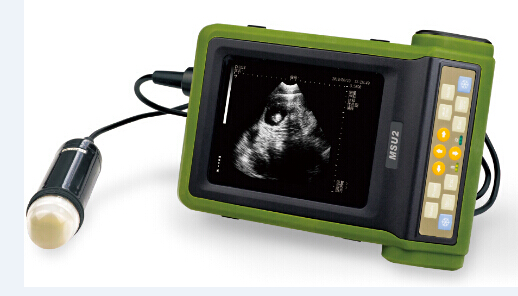

MSU2 full B mode veterinary ultrasound scanner

MSU2 full B mode veterinary ultrasound scanner

    • MSU2 full B mode veterinary  ultrasound scanner
    • MSU2 full B mode veterinary  ultrasound scanner
    • MSU2 full B mode veterinary  ultrasound scanner
    • MSU2 full B mode veterinary  ultrasound scanner
    • MSU2 full B mode veterinary  ultrasound scanner
  • MSU2 full B mode veterinary  ultrasound scanner

    Product Details:

    Place of Origin: China
    Brand Name: KAIXIN
    Certification: CE,ISO13485,
    Model Number: MSU2

    Payment & Shipping Terms:

    Packaging Details: Carton
    Delivery Time: A week after payment
    Payment Terms: T/T
    Supply Ability: 100
    Minimum Order Quantity: 1
    Contact Now
    Detailed Product Description
    High Light:

    veterinary ultrasound scanner

    ,

    Mechanical ultrasound

    ,

    Portable

    Full digital Mechanical Sector

    ultrasonic diagnostic instrument

    MSU2VET USE

    Target customer:

    Breeder, farmer (not veterinary).

    They mainly see pregnancy, low budget.

    Animal: Pig, cattle, sheep, dog, cat, ect.

    Feature:

    • Economic price.
    • 1.1kg weight, Smart and light.
    • 5.7" High resolution color LED.
    • Have soft rubber coat, splash-proof, dust-proof.
    • sunshine cover, suitable for use in outdoor strong sunshine.
    • High-capacity lithium Battery ,more than 6 hours work.
    • Available for left/right hand alternative use, eliminating operate fatigue.
    • Multiple use method: hand-held, chest hanging, back hanging , waist hanging, ect.

    Technical Specification:

    • Adopt ARM7 Embedded Control Systems and proprietary miniaturization technology of ultrasonic hardware system.

    5.7 "high resolution color LED display, high brightness, high contrast, wide visual Angle, suitable for outdoor

    • Language: Chinese/English switchable.
    • Body mark: 1. general use 2.bovine 3.canine 4.equine 5.feline 6. Cardiology, 7.swine---7 kinds, total 27 pcs of body marks with probe position.
    • Display mode:B、2B、4B 、B/M、M, total 5 kinds.

    Gain range:0~127dB

    • Intelligent TGC control. Near-field:0~-31dB;Far-field:0~31dB
    • Dynamic range: 27~90dB
    • Gray : 256
    • Magnification:0.8、1.0、1.2、1.6、2.0, total five kinds;
    • Frequency conversion:2 kinds
    • Frame correlation:0、1、2、3 total 4 kinds.
    • Image post-process adjustment:0、1、2、3,total 4 kinds.

    • 4 grades depth adjustment, maximum display depth is 200mm.
    • Image horizontal/ vertical reverse, left/right reverse.
    • Pseudo-color: 8 kinds (incl. B/W).
    • Permanent image storage: 100 frames.
    • USB disk storage function
    • Puncture guiding function,( 2 guiding lines, angel and position adjustable)
    • Equipped with lithotripsy software, realize real-time positioning measurement.
    • Energy saving function.
    • Character brightness: choose from 160、192、224、255 for brightness.
    • Keyboard tone:2 kinds(open、close);
    • Dual-mode TV output:PAL/NTSC, connecting to thermal printer and ultrasonic working station.
    • Net weight: 1.1KG
    • Main unit size: 212mm*154mm*58mm(length x width x height)

    Image storage:

    • Permanent image storage: 100 frames.
    • USB port support one-key storage image to USB.

    Measurement and analysis:

    • General measurement:distance、Perimeter, area (trace method, ellipse method), volume, etc.
    • Cardiac measurement: depth, slope, heart rate, time.
    • OB measurement: EDD and GA for Bovine, equine, ovine, canine, feline, goat, swine and llama.
    • OB report function

    Power supply:

    • Dual power supply. Power:AC110/230 -15%~+10%(self-adaption supply voltage) 60/50Hz±1Hz.
    • Battery: one pc of high-capacity lithium Battery( 5200MAh) ,more than 6 hours work.

    External devices:

    • Color laser printer. Directly print various image and reports.
    • Thermal printer (Sony UP897MD, Mitsubishi P93W-Z).

    Standard configuration

    • Main unit: 1 pc
    • 3.5MHz waterproof mechanical sector probe : 1 pc.
    • Power adapter: 1 pc
    • Internal battery : 1 pc
    • The leather Case: 1 unit
    • Green soft rubber coat: 1 pc
    • Sunshine cover : 1 unit (A,B,C three sections adjustable)
    • Black plastic suitcase : 1 pc
    • Base Charger, belt, probe socket spatula: 1 pc for each.

    Optional configuration:

    • Thermal printer (Sony UP897MD, Mitsubishi P93W-Z).
    • Battery(5200mAH)
    • Color laser printer(Specified models:HP Color LaserJet CP1515n、HP Color LaserJet CP1525n)
