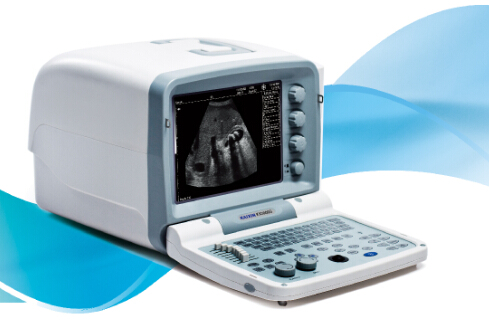

KX2000G portable B mode human ultrasound scanner

Portable:KX2000G(09)

full digital B mode ultrasonic diagnostic instruments

Parameter:

• Adopt ARM9 Embedded Control Systems, FPGA signal processing systems and specially selected ultrasonic hardware system, making the machine safer and more reliable.
• 10" high resolution CRT monitor, line by line scanning without sparkle.
• Menu operation, language: Chinese/English switchable
• Single probe socket, automatically identify the probe, support several optional probes.

• Body mark: 64 pcs of body marks with probe position.

• Display mode:B,2B,4B ,B/M,M, total 5 kinds.
• 8 kinds of Magnification, maximum display depth is 240mm.
• Gain range:0～127dB
• Dynamic range :27～100dB；
• Gray:256
• Frame frequency:30 frames/second.
• Permanent image storage: 100 frames.
• Cine loop:256 frames.
• Puncture guiding function,(2 guiding lines, angel and position adjustable)

• General measurement:distance,perimeter, area , volume, heart rate, GA, EFW, EDD.
• Obstetric measurement and analysis: 10 kind of obstetric software, several GA measurement and OB report.

• Transfer image through USB port to computer.
• Dual-mode TV output:ＰＡＬ/ＮＴＳＣ, connecting to thermal printer and ultrasonic working station.
• Power supply:AC110/230 -15％～＋10％(self-adaption supply voltage) 60/50Hz±1Hz.

• Net weight:12kg.
• Main unit size:387x319x270mm(length x width x height).

Standard configuration:

• Main unit: 1 pc
• 10" high resolution CRT monitor.
• Single probe socket , automatically identify probe technology.
• 3.5MHz multi-frequency abdomen convex probe: 1 pc

Optional configuration:

• Probe:

7.5MHz multi-frequency high linear probe

6.5MHz multi-frequency trans-vaginal probe

5.0MHz multi-frequency micro-convex pediatrics probe

• Trolley
• Thermal printer (P93W-S)
• Color LCD monitor
