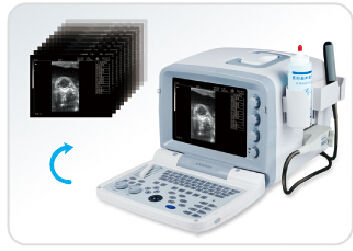

KX2000V portable full digital B mode veterinary diagnostic ultrasound scanner

KX2000V portable full digital B mode veterinary diagnostic ultrasound scanner

    • KX2000V portable full digital B mode veterinary diagnostic ultrasound scanner
    • KX2000V portable full digital B mode veterinary diagnostic ultrasound scanner
    • KX2000V portable full digital B mode veterinary diagnostic ultrasound scanner
    • KX2000V portable full digital B mode veterinary diagnostic ultrasound scanner
    • KX2000V portable full digital B mode veterinary diagnostic ultrasound scanner
  • KX2000V portable full digital B mode veterinary diagnostic ultrasound scanner

    Product Details:

    Place of Origin: China
    Brand Name: KAIXIN
    Certification: CE,ISO13485,
    Model Number: KX2000V

    Payment & Shipping Terms:

    Packaging Details: Carton
    Delivery Time: One week after payment
    Payment Terms: T/T
    Supply Ability: 100
    Minimum Order Quantity: 1
    Contact Now
    Detailed Product Description

    KX2000G(09)VET

    FULL DIGITAL Vet





    KX2000G vet Full Digital B Mode Ultrasonic Diagnostic Instrument

    Display:10" high resolution black & white display, line by line scan without sparkle, protect the doctors’ eyes, and reduce the visual fatigue.

    Probe mode:electric convex / electric linear

    Elements:64 elements

    Standard probe:6.5Mhz multi-frequency linear rectal probe (4.5 / 5.5 / 6.5 / 7.5 MHz)

    Optional probe: 3.5MHz multi-frequency convex probe (2.0 / 2.5 / 3.5 / 5.0 MHz)

    Optional probe: 4.0Mhz multi-frequency rectal convex probe (2.0/2.5/4.0/5.0 MHz)

    Optional probe: 5.0Mhz multi-frequency micro-convex probe (4.5 / 5.0 / 6.5 /7.5 MHz)

    Scanning angle:convex probe 60°

    Body mark:1. Bovine, 2.Equine, 3. Canine, 4. Feline, 5. ovine. Total 22 body marks.

    Probe socket:1 PC

    Channels:≥16channels digital beaming composite

    Resolution:horizontal≤2mm,vertical≤1mm

    Dead Zone: ≤5mm (test report is 3 mm)

    Max scanning depth:≥170 mm(test report actual ≥180 mm)

    The max display depth :210 mm (depth hoist could see 240 mm)

    Geometry position precision:Transversal≤5%,Longitudinal≤5%

    Scanning mode:B,2B,4B ,B/M,M

    8 kinds magnification

    Gain:0~127dB

    Dynamic scope:27~90dB,visible & adjustable

    Four different angles / switchable width

    Gray scale:256

    Imaging technique:full digital beam-composite, continuous dynamic focusing, dynamic aperture

    Image storage:100 frames permanent storage, without loss of image when power off.

    256 frames cine loop

    TGC control, far field / near field

    Image processing:pre-process (continuous dynamic focus, dynamic aperture, dynamic filter), post-process(4 grades gamma correction),frame correlation, black/white reversal, left/right reversal, up/down reversal, edge enhancement(4 grades), etc.

    Depth hoist / local zooming

    Frame frequency:30 frames/s

    Measurement:distance, circumference, area, volume, etc.

    OBmeasurement:GA & EDD of Equine, Bovine, Ovine, Canine, Feline

    Conventional measurement of cardiac: depth, slope, heart rate, cycle

    Note:name, age, gender, hospital name, time, date, probe mode, frequency, focus, frame correlation, gain, contract, etc.

    English Menu

    photoelectricity tracking ball

    Puncture guide, with two approvable guiding lines whose angle and position can be adjustable.

    USBfor image transfer(optional software of case report process center)

    Output:PAL / NTSC

    Power supply:AC110/230 -15%~+10%(self-adaption supply voltage) 60/50Hz±1Hz

    Energy-saving

    Video printer
