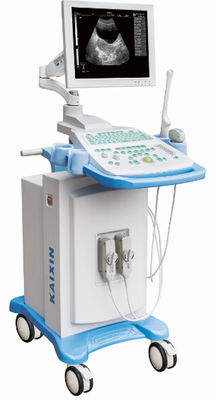

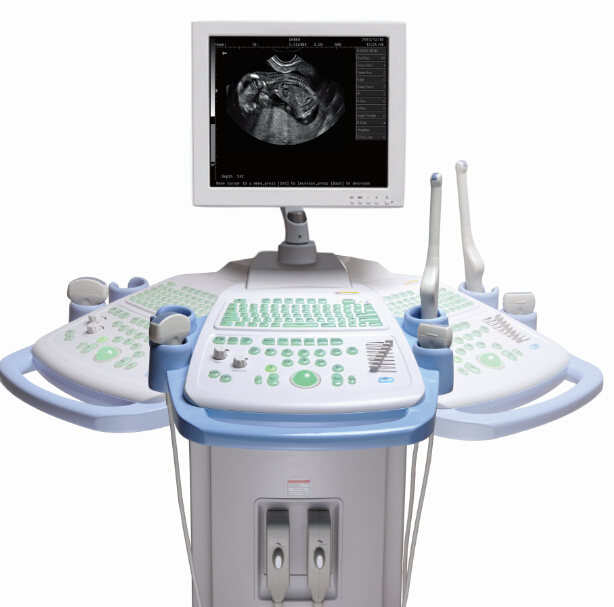

KX2805 trolly ultrasonic diagnostic instruments

KX2805 trolly ultrasonic diagnostic instruments

    • KX2805 trolly ultrasonic diagnostic instruments
    • KX2805 trolly ultrasonic diagnostic instruments
    • KX2805 trolly ultrasonic diagnostic instruments
    • KX2805 trolly ultrasonic diagnostic instruments
  • KX2805 trolly ultrasonic diagnostic instruments

    Product Details:

    Place of Origin: China
    Brand Name: KAIXIN
    Certification: CE,ISO13485,
    Model Number: KX2805

    Payment & Shipping Terms:

    Packaging Details: Carton
    Delivery Time: One week after payment
    Payment Terms: T/T
    Supply Ability: 100
    Minimum Order Quantity: 1
    Contact Now
    Detailed Product Description

    Trolley: KX2805 full digital B mode ultrasonic diagnostic instruments



    • Adopt ARM9 Embedded Control Systems, FPGA signal processing systems and specially selected ultrasonic hardware system, making the machine safer and more reliable.
    • 12" color LCD monitor.
    • Menu operation, support 5 customized languages: English, Spanish, Russian, French, Portuguese.
    • Double probe sockets, automatically identify the probe, support several optional probes.
    • Probe elements: 80.
    • Body mark: 64 pcs of body marks with probe position.
    • Display mode:B,2B,4B ,B/M,M, total 5 kinds.
    • 28 grades Image depth adjustment, maximum display depth is 245mm.
    • Gain range:0~127dB
    • Dynamic range :27~100dB;
    • Gray:256
    • Intelligent TGC control: 8 grades.
    • Frame frequency:30 frames/second.
    • Internal pseudo-color: 8 kinds (incl. B/W). Optional color LCD monitor.
    • Image storage: main unit Disk C 32 MB capacity, 100 frames permanent image storage, without loss when power off.
    • Cine loop: 256 frame.
    • Puncture guiding function(2 guiding lines,angel and position adjustable)
    • General measurement:distance,perimeter, area, volume, angle, length and area stenosis ratio measurement.
    • Obstetric measurement and analysis: 15 kind of obstetric software, several GA measurement, amniotic fluid index ,fetal growth curve and OB report.
    • Cardiac measurement and analysis: M general measurement and B general measurement software , and cardiac report .
    • Gynecology measurement and analysis: gynecology general measurement and gynecology report.
    • Urology measurement and analysis: residual urine volume, prostate volume, and urology report .
    • Statistics function: column diagram, sectional view.
    • Two USB ports support large capacity USB disk (support document management/software upgrades/one-key storage), and laser printer directly print various image and reports.
    • Dual-mode TV output:PAL/NTSC, connecting to thermal printer and ultrasonic working station.
    • DICOM3.0 network port,realizing network transmission easily.
    • Dual power supply system. Power:AC110/230 -15%~+10%(self-adaption supply voltage ) 60/50Hz±1Hz.
    • Net weight:40 kg;
    • Main unit size:790×500×(1200-1400)mm(length x width x height).


    Standard configuration:

    • Main unit: 1 pc
    • 12" color LCD monitor : 1 pc
    • Double probe sockets, automatically identify probe technology.
    • 3.5MHz multi-frequency abdomen convex probe: 1 pc


    Optional configuration:

    • Probe:

    7.5MHz multi-frequency high linear probe

    6.5MHz multi-frequency trans-vaginal probe

    3.5MHz multi-frequency micro-convex cardio probe

    5.0MHz multi-frequency micro-convex pediatrics probe

    7.5MHz multi-frequency high linear rectal probe

    • Thermal printer (P93W-S)
    • Laser printer(HP Laser Jet 1020,HP Laser Jet 1022,HP Laser Jet P1007,HP Laser Jet P1008)
