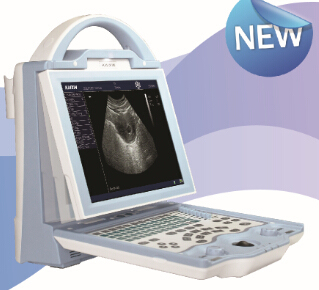

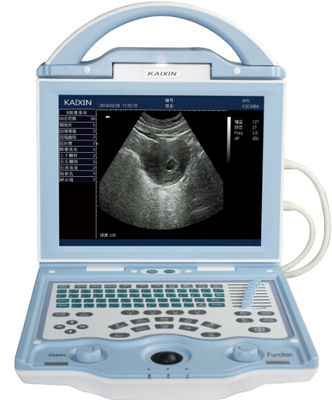

    KX5600 Human Ultrasound Scanner

    (NewPortable LED Model)Tech

    Parameters:

    • 10.4’ high resolution color LED backlight display, with high contrast and wide viewing angle;
    • Adopt ARM7 embedded control system +FPGA signal processing system + well selected ultrasound hardware system, all make the unit more stable.
    • Menu operation system, with different languages according to requirement including Spanish, English, French, Russian and Portuguese;
    • Two probe sockets, auto-identify different optional probe;
    • Body marks:total 64 kinds body marks indicating probe position;
    • Display mode:B,2B,4B ,B/M,M ;
    • Adjustable depth: 10 grades, max depth to 236mm;
    • Gain:0~127dB;
    • Contrast:27~90dB;
    • Gray scale:256;
    • 8 steps intelligent TGC;
    • Frame frequency: 30 frames /second
    • 8 kinds pseudo colors;

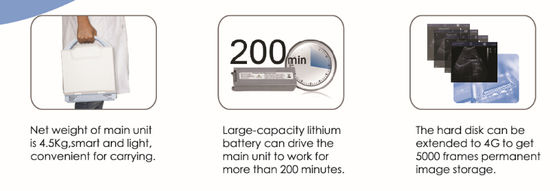

    • Image storage: 4G hard disk to permanently store about 5000 frames images;without loss when power off.
    • Cine loop:256 frames;
    • Puncture guide function with 2 correctable puncture guiding lines(adjustable angle & position);
    • the gravel software package with real-time position line measurement
    • Normal measurement: distance,perimeter, area, volume, angle, length and area stenosis ratio measurement.
    • Cardio measurement:Depth, slope, heart rate, cycle;
    • Gynecology measurement and analysis: gynecology general measurement and gynecology report.
    • OB measurement including: 15 kind of obstetric software, several GA measurement, amniotic fluid index ,fetal growth curve and OB report.
    • Urology measurement and analysis: residual urine volume, prostate volume, and urology report .
    • One-key store: concise and practical;
    • One-key review:fast, practical image review function;
    • One-key Print;
    • One-key Transfer the current frozen image to net workstation to complete its image text report and print directly;
    • Concise and practical, easy operation. The system includes network workstation to complete data & report management (You don’t need to invest more to buy extra ultrasound working station);
    • Unique One-key-light keyboard function for black room use;
    • Display brightness adjustable;
    • Dual TV output: PAL/NTSC, can connect video printer when necessary;
    • Power supply:100-240V~ 1.2-0.6A frequency:50-60Hz;
    • Power supply adaptor output:DC12.8V 3.0A;
    • Main unit weight:4.5kg(without accessories);
    • Main unit dimension:256×150×326mm(L×W×H);



    Main basic configuration:

    • Main unit 1pc;
    • 3.5MHz convex probe 1pc;
    • Power supply adaptor 1pc;
    • Reticle 1pc;
    • Two probe sockets

    Optional parts:

    • Optional probes

    6.5MHz multi-frequency trans-vaginal probe(through vagina)

    6.5MHz micro-convex probe for small animals

    7.5MHz multi-frequency linear probe

    7.5MHz multi-frequency cavity probe (through anus)

    • Battery charger
    • Li-battery: HYLB-1614 11.1V-4400mAh 48.84Wh
    • trolley
    • Video printer(UP-897MD)
    • Ethernet Switch
