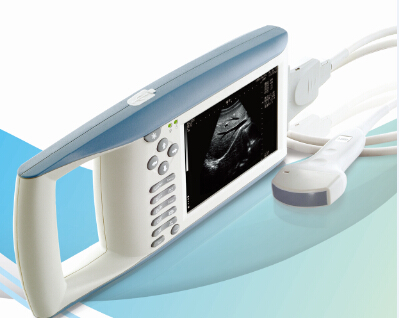

KX5100 full- digital B mode human diagnostic ultrasound scanner

KX5100 full- digital B mode human diagnostic ultrasound scanner

    • KX5100 full- digital B mode human diagnostic ultrasound scanner
    • KX5100 full- digital B mode human diagnostic ultrasound scanner
    • KX5100 full- digital B mode human diagnostic ultrasound scanner
    • KX5100 full- digital B mode human diagnostic ultrasound scanner
    • KX5100 full- digital B mode human diagnostic ultrasound scanner
  • KX5100 full- digital B mode human diagnostic ultrasound scanner

    Product Details:

    Place of Origin: China
    Brand Name: KAIXIN
    Certification: CE,ISO13485,
    Model Number: KX5100

    Payment & Shipping Terms:

    Packaging Details: Carton
    Delivery Time: A week after payment
    Payment Terms: T/T
    Supply Ability: 100
    Minimum Order Quantity: 1
    Contact Now
    Detailed Product Description

    KX5100Human Use



    Application:Abdomen, GYN & OB, small parts, fat, orthopedics, breast, musculoskeletal etc.



    Technical Specification & Features:



    • Probe element:80 elements
    • Scanning mode: convex, linear
    • 6.4" high resolution color LCD.
    • Net weight:1.5kg;
    • Gray:256.
    • Language: Chinese/English switchable.
    • Main unit size:326x162x45mm(length x width x height).
    • Adopt ARM7 Embedded Control Systems and proprietary miniaturization technology of ultrasonic hardware system.
    • Single probe socket, automatically identify the probe, support several optional probes.
    • Body mark: 64 pcs of body marks with probe position.
    • Display mode:B,2B,4B ,B/M,M, total 5 kinds.
    • 8 kinds of Magnification, maximum display depth is 240mm.
    • Gain range:0~127dB.
    • Dynamic range:27~90dB.
    • Intelligent TGC control: near-field and far-field adjustment
    • Intelligent and adjustable focus
    • Frame frequency:30 frames/second.
    • Pseudo-color: 8 kinds (incl. B/W).
    • Dual-mode TV output:PAL/NTSC, connecting to thermal printer and ultrasonic working station.



    Image storage:

    • Permanent image storage: 100 frames.
    • Cine loop:256 frames.
    • USB port support large capacity USB disk (support document management/software upgrades/one-key storage), and color laser printer directly print various image and reports.



    USB disk operation functions:

    1. Increase the function of read image in the USB ;
    2. Increase that the single image could be storage between the ultrasound and the USB;
    3. Increase that the mass image could be storage between the ultrasound and the USB;
    4. Increase delete the image function (before the image only be cover);
    5. Increase storage the color image function( before only black and white image);

    The adjustment of IP,image negative and color change is available when you recall the image.



    Measurement and analysis:

    • Puncture guiding function (2 guiding lines,angel and position adjustable).
    • General measurement:distance,perimeter, area , volume, heart rate, GA, EFW, EDD.
    • Obstetric measurement and analysis: 15 kind of obstetric software, several GA measurement and OB report.
    • Grid calculate:10mmgrid superimposed over image for quick measurement. Customer just need calculate the grid to know measure result.





    Power supply

    • Dual power supply. Power:AC110/230 -15%~+10%(self-adaption supply voltage) 60/50Hz±1Hz.
    • Battery: high-capacity lithium Battery( 2400MAh) ,more than 2 hours work per battery. Two pcs of battery total work more than 5 hours.



    Standard configuration:

    • Main unit: 1 pc
    • 3.5MHz multi-frequency abdomen convex probe: 1 pc
    • Power adapter: 1 pc
    • Internal lithium battery : 2 pcs
    • Metal case: 1pc.
    • Silica gel base : 1pc



    Optional configuration:

    • Probe:

    7.5MHz multi-frequency high linear probe

    6.5MHz multi-frequency trans-vaginal probe

    5.0MHz multi-frequency micro-convex pediatrics probe

    3.5MHz multi-frequency micro-convex cardio probe

    • USB flash disk
    • Trolley
    • Thermal printer (P93W-S)
    • Color laser printer(Specified models:HP Color laser Jet CP1515n,HP Color laser Jet CP1525)
    • Battery(2400mAH)
    • Mouse
