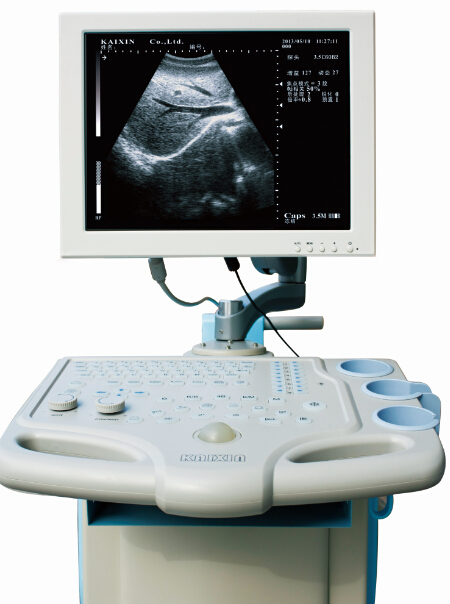

KX2800 Full digital B mode ultrasonic diagnostic instruments
Adopt ARM7 Embedded Control Systems, FPGA signal processing system and specially selected ultrasonic hardware system, making the machine more reliable.
15" high resolution LCD monitor
Menu operation, support 5 customized languages: English, Spanish, Russian, French, Portuguese
Double probe sockets, automatically identify the probe, support several optional probes.
Body mark: 64 body marks with probe position.
Display mode: B, 2B, 4B, B/M, M, total 5 kinds.
10 grades Image depth adjustment, maximum display depth is 236mm.
Dynamic range :27～90dB.
Intelligent TGC control: 8 segments.
Frame frequency:30 frames/second
Pseudo-color: 8 kinds(incl.B/W)
Image storage: main unit Disk C 32 MB capacity, 100 frames permanent image storage, without loss of image when power off.
Cine loop: 256 frame.
Puncture guiding function(2 guiding lines, angle and position adjustable).
Equipped with lithotripsy software, realize real-time positioning measurement.
General measurement: Distance, perimeter, area, volume, angle, length and area stenosis ratio measurement.
Obstetric measurement and analysis: 15 kinds of obstetric tables, several GA measurement, amniotic fluid index, fetal growth curve and OB report.
Gynecology measurement and analysis: gynecology general measurement and gynecology report.
Urology measurement and analysis: residual urine volume, prostate volume, and urology report
Two USB ports support large capacity U disk (support document management/software upgrades/one-key storage), and color laser printer directly print various images and reports, making the output of diagnosis more convenient and simple.
Dual-mode TV output:ＰＡＬ/ＮＴＳＣ, connecting to video recorder and ultrasonic working station.
Power: AC110/230V -15％～＋10％(self-adaptation supply voltage ) 60/50Hz±1Hz.
Main unit size:725x445x(1200-1400)mm(length x width x height); Note: height of liquid crystal holder is adjustable
