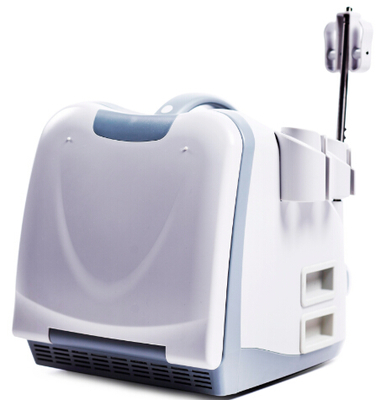

portable human ultrasound scanner

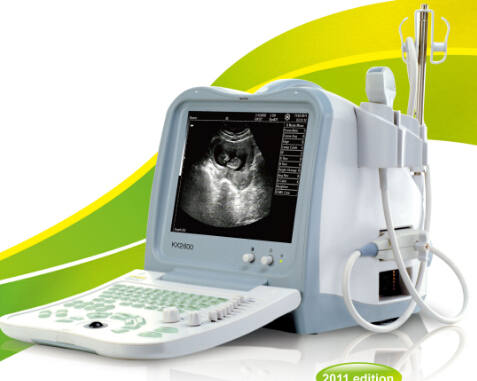

Portable:KX2600(09) full digital B mode ultrasonic diagnostic instruments

Parameter:

• Adopt ARM9 Embedded Control Systems, FPGA signal processing system and specially selected ultrasonic hardware system, making the machine more reliable.
• 10" high resolution CRT monitor, line by line scan without sparkle.

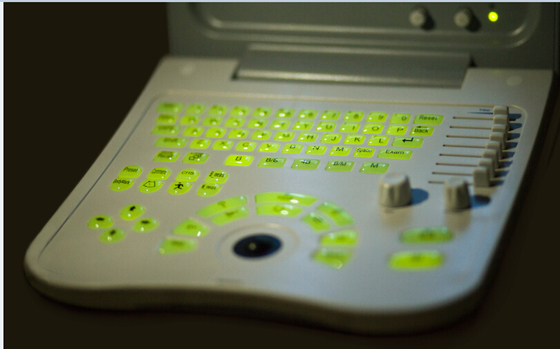

• Menu operation, support 5 customized languages: English, Spanish, Russian, French, Portuguese.

• Double probe sockets, automatically identify the probe, support several optional probes.

• Body mark: 64 pcs of body marks with probe position.

• Display mode:B,2B,4B ,B/M,M, total 5 kinds.
• 28 grades depth adjustment, maximum display depth is 245mm.
• Gain range:0～127dB
• Dynamic range:27～90dB
• Gray:256
• Intelligent TGC control: 8 grades.
• Frame frequency:30 frames/second.
• Image storage: main unit Disk C 32 MB capacity, 100 frames permanent image storage, without loss when power off.
• Cine loop:256 frames.
• Puncture guiding function(2 guiding lines,angel and position adjustable)
• General measurement:distance,perimeter, area, volume, angle, length and area stenosis ratio measurement.

• Obstetric measurement and analysis: 15 kind of obstetric software, several GA measurement, amniotic fluid index ,fetal growth curve and OB report .

• Cardiac measurement and analysis: M general measurement and B general measurement software , and cardiac report .
• Gynecology measurement and analysis: gynecology general measurement and gynecology report .
• Urology measurement and analysis: residual urine volume, prostate volume, and urology report .

• Two USB ports support large capacity USB disk (support document management/software upgrades/one-key storage), and laser printer directly print various image and reports.

• Dual-mode TV output:ＰＡＬ/ＮＴＳＣ, connecting to thermal printer and ultrasonic working station.
• DICOM3.0 network port,realizing network transmission easily.
• Power supply:AC110/230 -15％～＋10％(self-adaption supply voltage)60/50Hz±1Hz；

• Net weight:10kg；
• Main unit size:400x280x325mm(length x width x height).

Standard configuration:

• Main unit: 1 pc
• 10.4"high resolution CRT monitor.
• Double probe sockets, automatically identify probe technology.
• 3.5MHz multi-frequency abdomen convex probe: 1 pc

Optional configuration:

• Probe:

7.5MHz multi-frequency high linear probe

6.5MHz multi-frequency trans-vaginal probe

3.5MHz multi-frequency micro-convex cardio probe

5.0MHz multi-frequency micro-convex pediatrics probe

7.5MHz multi-frequency high linear rectal probe

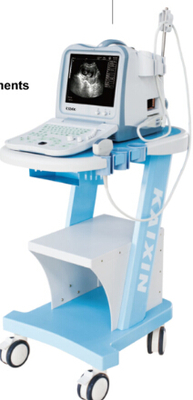

• Trolley
• Thermal printer (P93W-S)
• Laser printer(Specified models:HP Laser Jet 1020,HP Laser Jet 1022,HP Laser Jet P1007,HP Laser Jet P1008)
