trolly ultrasonic diagnostic instruments

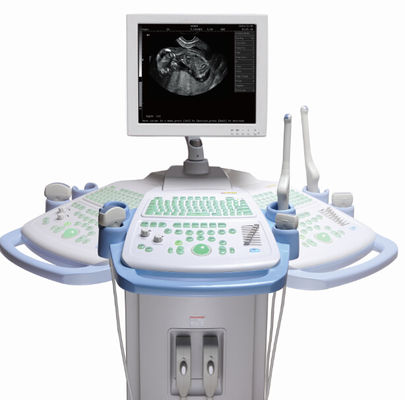

Trolley: KX2805 full digital B mode ultrasonic diagnostic instruments

Parameter:

• Adopt ARM9 Embedded Control Systems, FPGA signal processing systems and specially selected ultrasonic hardware system, making the machine safer and more reliable.
• 12" color LCD monitor.
• Menu operation, support 5 customized languages: English, Spanish, Russian, French, Portuguese.
• Double probe sockets, automatically identify the probe, support several optional probes.

• Probe elements: 80.

• Body mark: 64 pcs of body marks with probe position.

• Display mode:B,2B,4B ,B/M,M, total 5 kinds.
• 28 grades Image depth adjustment, maximum display depth is 245mm.
• Gain range:0～127dB
• Dynamic range :27～100dB；
• Gray:256
• Intelligent TGC control: 8 grades.
• Frame frequency:30 frames/second.
• Internal pseudo-color: 8 kinds (incl. B/W). Optional color LCD monitor.
• Image storage: main unit Disk C 32 MB capacity, 100 frames permanent image storage, without loss when power off.
• Cine loop: 256 frame.
• Puncture guiding function(2 guiding lines,angel and position adjustable)
• General measurement:distance,perimeter, area, volume, angle, length and area stenosis ratio measurement.

• Obstetric measurement and analysis: 15 kind of obstetric software, several GA measurement, amniotic fluid index ,fetal growth curve and OB report.

• Cardiac measurement and analysis: M general measurement and B general measurement software , and cardiac report .
• Gynecology measurement and analysis: gynecology general measurement and gynecology report.
• Urology measurement and analysis: residual urine volume, prostate volume, and urology report .
• Statistics function: column diagram, sectional view.

• Two USB ports support large capacity USB disk (support document management/software upgrades/one-key storage), and laser printer directly print various image and reports.
• Dual-mode TV output:ＰＡＬ/ＮＴＳＣ, connecting to thermal printer and ultrasonic working station.

• DICOM3.0 network port,realizing network transmission easily.
• Dual power supply system. Power:AC110/230 -15％～＋10％(self-adaption supply voltage ) 60/50Hz±1Hz.

• Net weight:40 kg；
• Main unit size:790×500×(1200-1400)mm(length x width x height).

Standard configuration:

• Main unit: 1 pc
• 12" color LCD monitor : 1 pc
• Double probe sockets, automatically identify probe technology.
• 3.5MHz multi-frequency abdomen convex probe: 1 pc

Optional configuration:

• Probe:

7.5MHz multi-frequency high linear probe

6.5MHz multi-frequency trans-vaginal probe

3.5MHz multi-frequency micro-convex cardio probe

5.0MHz multi-frequency micro-convex pediatrics probe

7.5MHz multi-frequency high linear rectal probe

• Thermal printer (P93W-S)
• Laser printer(HP Laser Jet 1020,HP Laser Jet 1022,HP Laser Jet P1007,HP Laser Jet P1008)
