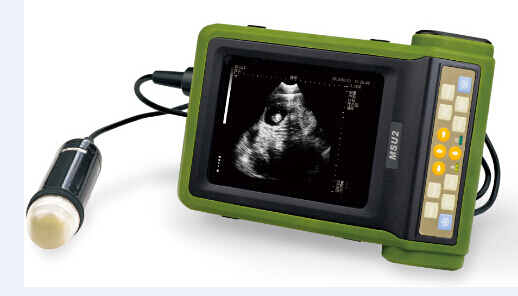

Full digital Mechanical Sector
ultrasonic diagnostic instrument
MSU2VET USE
Target customer:
Breeder, farmer (not veterinary).
They mainly see pregnancy, low budget.
Animal: Pig, cattle, sheep, dog, cat, ect.
Feature:
- Economic price.
- 1.1kg weight, Smart and light.
- 5.7" High resolution color LED.
- Have soft rubber coat, splash-proof, dust-proof.
- sunshine cover, suitable for use in outdoor strong sunshine.
- High-capacity lithium Battery ,more than 6 hours work.
- Available for left/right hand alternative use, eliminating operate fatigue.
- Multiple use method: hand-held, chest hanging, back hanging , waist hanging, ect.
Technical Specification:
- Adopt ARM7 Embedded Control Systems and proprietary miniaturization technology of ultrasonic hardware system.
5.7 "high resolution color LED display, high brightness, high contrast, wide visual Angle, suitable for outdoor
- Language: Chinese/English switchable.
- Body mark: 1. general use 2.bovine 3.canine 4.equine 5.feline 6. Cardiology, 7.swine---7 kinds, total 27 pcs of body marks with probe position.
- Display mode:B,2B,4B ,B/M,M, total 5 kinds.
Gain range:0~127dB
- Intelligent TGC control. Near-field:0～-31dB；Far-field:0～31dB
- Dynamic range: 27~90dB
- Gray : 256
- Magnification:0.8,1.0,1.2,1.6,2.0, total five kinds；
- Frequency conversion:2 kinds
- Frame correlation:0,1,2,3 total 4 kinds.
- Image post-process adjustment:0,1,2,3,total 4 kinds.
- 4 grades depth adjustment, maximum display depth is 200mm.
- Image horizontal/ vertical reverse, left/right reverse.
- Pseudo-color: 8 kinds (incl. B/W).
- Permanent image storage: 100 frames.
- USB disk storage function
- Puncture guiding function,( 2 guiding lines, angel and position adjustable)
- Equipped with lithotripsy software, realize real-time positioning measurement.
- Energy saving function.
- Character brightness: choose from 160,192,224,255 for brightness.
- Keyboard tone:2 kinds(open,close)；
- Dual-mode TV output:ＰＡＬ/ＮＴＳＣ, connecting to thermal printer and ultrasonic working station.
- Net weight: 1.1KG
- Main unit size: 212mm*154mm*58mm(length x width x height)
Image storage:
- Permanent image storage: 100 frames.
- USB port support one-key storage image to USB.
Measurement and analysis:
- General measurement:distance,Perimeter, area (trace method, ellipse method), volume, etc.
- Cardiac measurement: depth, slope, heart rate, time.
- OB measurement: EDD and GA for Bovine, equine, ovine, canine, feline, goat, swine and llama.
- OB report function
Power supply:
- Dual power supply. Power:AC110/230 -15％～＋10％(self-adaption supply voltage) 60/50Hz±1Hz.
- Battery: one pc of high-capacity lithium Battery( 5200MAh) ,more than 6 hours work.
External devices:
- Color laser printer. Directly print various image and reports.
- Thermal printer (Sony UP897MD, Mitsubishi P93W-Z).
Standard configuration:
- Main unit: 1 pc
- 3.5MHz waterproof mechanical sector probe : 1 pc.
- Power adapter: 1 pc
- Internal battery : 1 pc
- The leather Case: 1 unit
- Green soft rubber coat: 1 pc
- Sunshine cover : 1 unit (A,B,C three sections adjustable)
- Black plastic suitcase : 1 pc
- Base Charger, belt, probe socket spatula: 1 pc for each.
Optional configuration:
- Thermal printer (Sony UP897MD, Mitsubishi P93W-Z).
- Battery(5200mAH)
- Color laser printer(Specified models:HP Color LaserJet CP1515n,HP Color LaserJet CP1525n)
