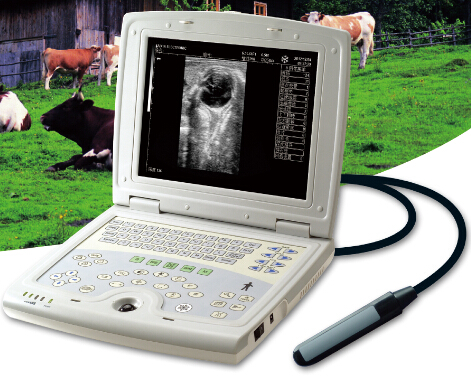

KX5000V laptop B mode veterinary ultrasound scanner

KX5000V laptop B mode veterinary ultrasound scanner

    • KX5000V laptop B mode veterinary ultrasound scanner
    • KX5000V laptop B mode veterinary ultrasound scanner
    • KX5000V laptop B mode veterinary ultrasound scanner
  • KX5000V laptop B mode veterinary ultrasound scanner

    Product Details:

    Place of Origin: China
    Brand Name: KAIXIN
    Certification: CE,ISO13485,
    Model Number: KX5000V

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Carton
    Delivery Time: One week after payment
    Payment Terms: T/T
    Supply Ability: 100
    Minimum Order Quantity: 1
    Contact Now
    Detailed Product Description
    Weight: 2.2kg Battery: 2.5hours

    Full digital B mode ultrasonic diagnostic instruments

    KX5000 VET USE

    KX5000V laptop B mode veterinary ultrasound scanner


    Target customer:

    Veterinary, farmer, breeder.



    Designed widely for diagnosing of pregnancy, fertility and disease on bovine, equine, ovine, canine, feline, goat, swine, llama and other animals.



    • Notebook, internal li-battery easy to move.

    • Menu operation, easy to operate.

    • Net weight :2.2kg, light.

    • Support 5 customized languages: English, Spanish, Russian, French, Portuguese.

    • 10.4” LED. Before is 10.4” LCD. More brightness, engergy saving, wider viewing angle than LCD.

    • USB port for extracting images + print image and report via printer.

    • Measurements: basic (distance,area , etc. ) + OB(EDD and GA for 7 kinds animal) + Cardiac

    • OB report.


    Technical Specification

    • Adopt ARM7 Embedded Control Systems and proprietary miniaturization technology of ultrasonic hardware system.
    • 10.4" High resolution color LED monitor, high brightness, high contrast, wide visual, LED back light, image clear and exquisite.
    • Menu operation, support 5 customized languages: English, Spanish, Russian, French, Portuguese.
    • Single probe socket, automatically identify the probe, support several optional probes.
    • Body mark: 1. general use 2.bovine 3.canine 4.equine 5.feline 6.cadioloy, 7.swine---7 kinds, total 27 pcs for body marks with probe position.
    • Display mode:B,2B,4B ,B/M,M, total 5 kinds.
    • 10 kinds of Magnification, maximum display depth is 236 mm.
    • Gain range:0~127dB
    • Dynamic range:27~90dB
    • Gray:256
    • Intelligent TGC control: near-field and far-field adjustment
    • Adjustable and intelligent focus
    • Frame frequency:30 frames/second.
    • Pseudo-color: 8 kinds (incl. B/W).
    • Cine loop:256 frames.
    • Puncture guiding function(2 guiding lines,angel and position adjustable)
    • USB port support large capacity USB disk (support document management/software upgrades/one-key storage), and color laser printer directly print various image and reports.
    • Dual-mode TV output:PAL/NTSC, it could connect to thermal printer and ultrasonic working station.
    • Net weight:2.2kg.
    • Main unit size:290x245x48mm(length x width x height).


    Image storage:

    • 100 frames permanent image storage, without loss when power off.
    • USB port support one-key storage image to U disk.


    Measurement and analysis:

    • General measurement:distance,Perimeter, area (tracing method, ellipse method), volume, angle histogram, sectional view, Stenosis rate.,etc.
    • Cardiac measurements:depth, slope, heart rate, time.
    • OBmeasurement:EDD and GA for Bovine, equine, ovine, canine, feline, goat, swine and llama.
    • Automatically calculate theBack fat and Lean percentage of swine.
    • 5 kinds grid settingfor quick measurement.
    • OBreportfunction


    Power supply:

    • Dual power supply. Power:AC110/230 -15%~+10%(self-adaption supply voltage)60/50Hz±1Hz;
    • Battery:high-capacity lithium Battery( 2400MAh). Two pcs battery can work than 5 hours.

    Standard configuration:

    • Main unit: 1 pc
    • 6.5MHz multi-frequency micro-convex probe : 1 pc
    • Power adapter: 1 pc
    • Internal Li-battery : 2 pcs
    • Metal case: 1pc
    • Battery Charger:1pc

    Optional configuration:

    • Probe:

    6.5MHz multi-frequency linear rectal probe

    4.0Mhz multi-frequency convex rectal Probe and probe support

    3.5MHz multi-frequency convex probe

    7.5MHz multi-frequency linear probe

    6.5MHz multi-frequency trans-vaginal probe


    • Trolley
    • Thermal printer (MITSUBISHI,P93W-Z)
    • Color laser printer(Specified models:HP Color laser Jet CP1515n,HP Color laser Jet CP1525)
